PBX-514K | ProXbox

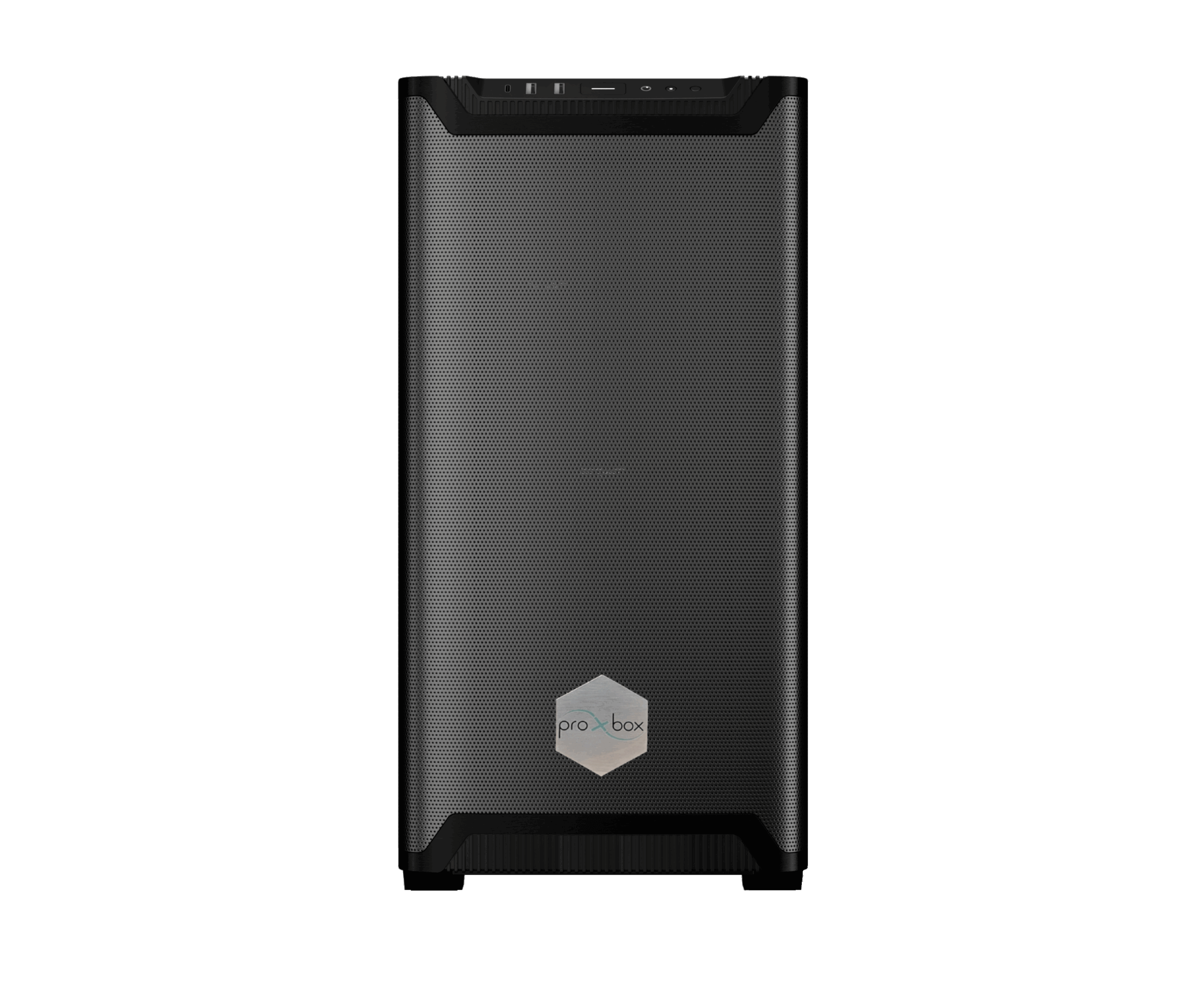

Modello PBX-514K

Super Workstation ProXbox

CAD and 3D Modeling Applications

Basic features

Intel® Core™ i5-14600KF up to 5.0GHz,
14 cores / 20 threads – 6 P-Core, 8 E-Core

Nvme 1TB Gen4 1DWPD,
R 700000 – W 400000 IOPS (4KB)

32GB DDR5-5600MHz,
CAS Latency 39

One Nvidia® GPU supported
A1000 8Gb, RTX 2000 ADA 16Gb or RTX 4000 ADA 20Gb

Software di gestione IT da remoto
Control Center Express

668W Platinum Level
Power Supply

Specifications

Processor
Chipset:	Intel® 600/700 Series
Socket:	Intel® Socket FCLGA1700
Processor:	Intel® Core™ i5-14600KF
# of Cores:	14 (6 P-Core, 8 E-Core)
# of Threads:	20
Core base frequency:	3.50GHz (P-Core), 2.60GHz (E-Core)
Core max frequency:	Up to 5.0GHz Overclocked
System cooling
Cooling:	Water Cooled
Radiator dimensions (mm):	398 (L) x 120 (W) x 38 (H)
Memory
Max configurable memory:	128GB DDR5-5600MHz (4 x 32GB)
CAS latency:	39
Storage
M.2 slots:	1 x M.2 2280 (PCIe 3.0 x4 mode)
Expansion slots
PCIe slots:	1 x PCIe 5.0 x16 2 x PCIe 3.0 x1
On-Board devices
Connectors:	1 x USB 3.2 Gen 2 4 x SATA 6Gb/s COM port LPT port SMBUS connector

Chassis
Form factor:	Midi-Tower
Front panel:	Personalized ProXbox's front panel to optimize the cabinet's air flow
Dimensions (mm):	450 (L) x 231 (W) x 463 (H)
Color:	Black
Input/Output
Top I/O:	1 x USB 3.2 Gen 2 Type C 2 x USB 3.2 Type A HD audio (Microphone + Audio)
Rear I/O:	1 x USB 3.2 Gen 2 1 x USB 2.0 HDMI port Display port Ethernet port COM port PS/2 mouse PS/2 keyboard 3 x Jack audio
Power supply
Base power:	668W ATX 3.0
Certification:	Platinum Level
Operating system
OS:	Microsoft® Windows™ 11 Pro 64 bit
Software
Gestione IT da remoto:	Control Center Express
Mouse e tastiera
Mouse:	Logitech® B110
Tastiera:	Logitech® K120
