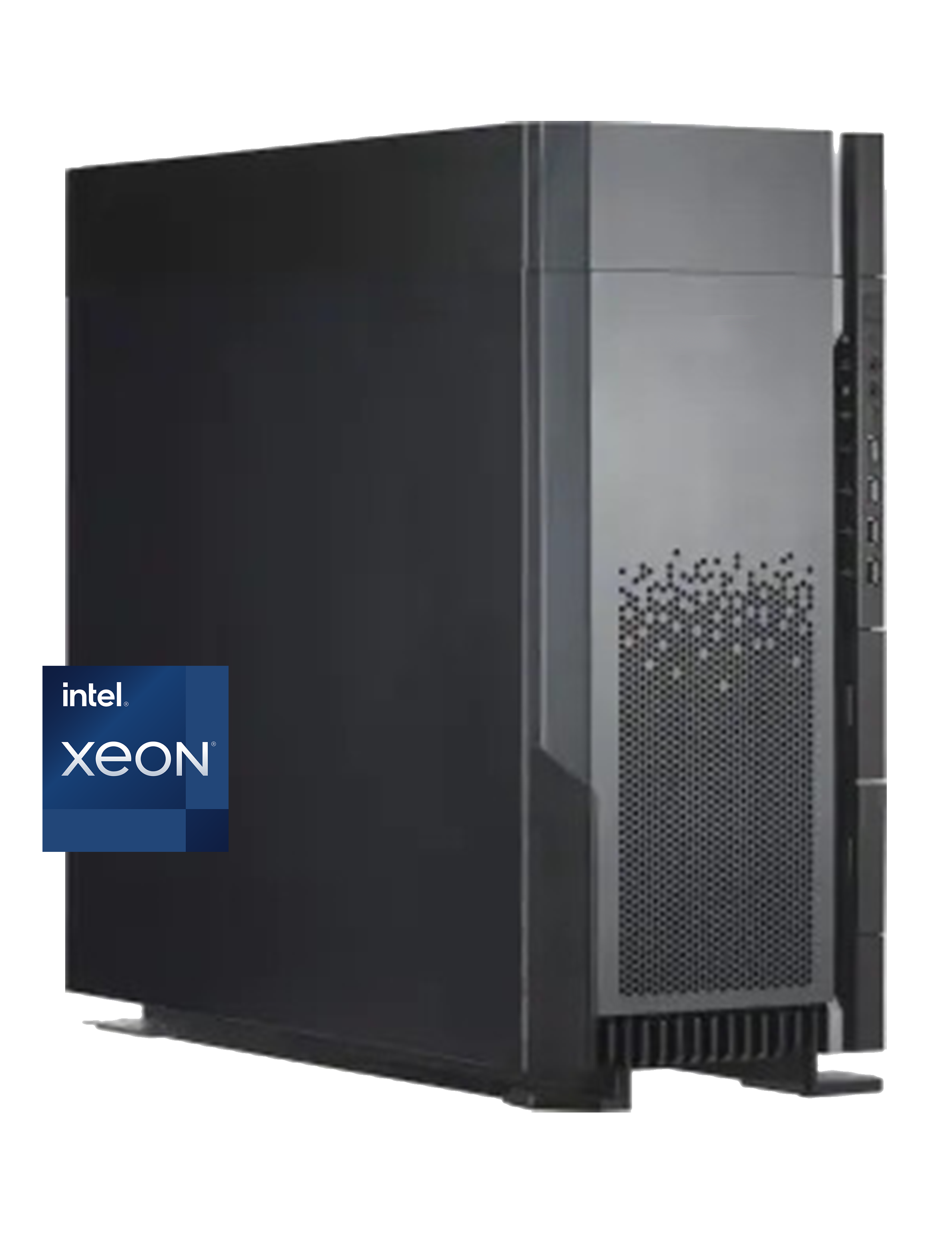

PBX-551A-T

TOP-Level Workstation

Product Design and Engineering Simulation
Media and Entertainment Content Creation

Basic features

Socket E (LGA4677) support
Intel® Xeon® W-3400 processors

Nvme 1TB Gen4 1DWPD,
R 700000 – W 400000 IOPS (4KB)

16 DIMMs,
up to 4TB: 16 x 256GB 3DS ECC Registered RDIMM

Up to 4 Nvidia® Quadro GPU supported
RTX 2000 ADA up to RTX 6000 ADA

2000W Platinum Level
Power Supply

Specifications

Processor
Chipset:	Intel® W790
Socket:	Intel® Socket E LGA4677
Processor:	Intel® Xeon® W-3400 processors
System cooling
Fans:	4 x 120mm
Memory
Capacity:	16 DIMM slots
Support:	Up to 4TB: 16 x 3DS ECC Registered RDIMM
Memory Type:	4800MHz ECC DDR5 RDIMM/LRDIMM
Storage
M.2 slots:	4 x PCIe 5.0 x4
Expansion slots
PCIe slots:	6 x PCIe 5.0 x16
On-Board devices
Network Connectivity:	1 x 10GbE BaseT with Marvell AQC113 1 x 1GbE BaseT with Intel® I210-AT
IPMI:	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Power supply
Base power:	2000W/2 Multi-Output Power supply
Certification:	Platinum Level

Chassis
Form factor:	Tower or 5U Rackmount
Dimensions (mm):	573 (L) x 222 (W) x 535 (H)
Color:	Black
Front Panel
Buttons:	Power On/Off button LED On/Off button
LEDs:	Power status LED
Input/Output
USB:	2 x USB 3.2 Gen 1 (2 front Type A) 5 x USB 3.2 Gen 2 (1 front Type C; 4 rear) 1 x USB 3.2 Gen 2x2 (1 rear) 4 x USB 2.0 (2 front Type A; 2 rear)
Video:	1 x VGA port
Serial Port:	1 x COM port
Drive Bays
Drive Bays:	4 x 3.5" SATA
Peripheral Bays:	2 x 5.25"
Operating system
OS:	Microsoft® Windows™ 11 Pro 64 bit Linux RHEL 9.0
Mouse e tastiera
Mouse:	Logitech® B110
Tastiera:	Logitech® K120
