PBX-7114K | ProXbox

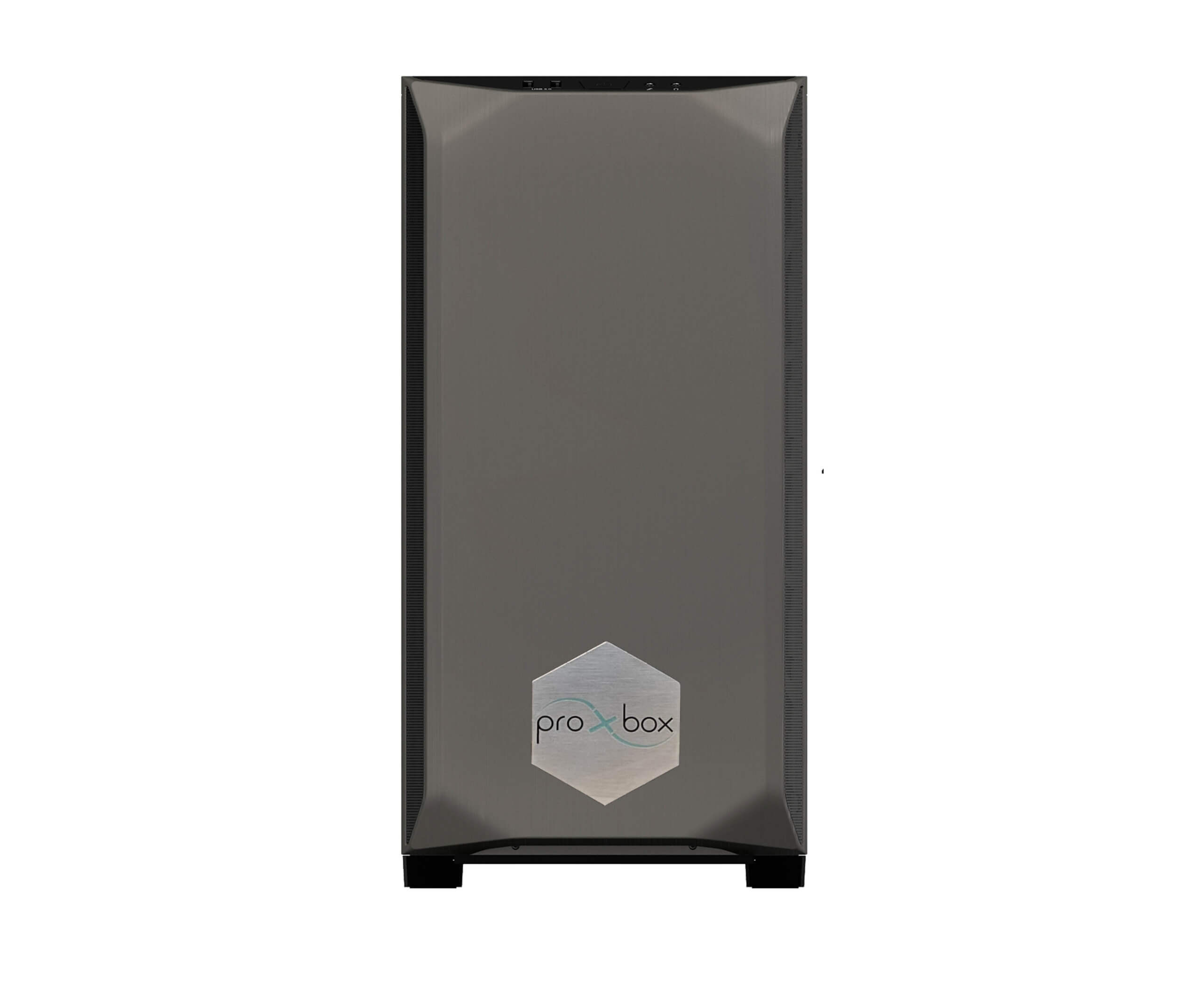

Modello PBX-7114K

ENTRY-Level Workstation

CAD and 3D Modeling Applications

Basic features

Intel® Core™ i7-14700KF up to 5.6GHz,
20 cores / 28 threads – 8 P-Core, 12 E-Core

Nvme 1TB Gen4 1DWPD,
R 700000 – W 400000 IOPS (4KB)

32GB DDR5-5200MHz,
CAS Latency 39

One Nvidia® GPU supported
T1000, A2000, 2000ADA, A4000, 4000ADA

Software di gestione IT da remoto
Control Center Express

668W Gold Level
Power Supply

Specifications

Processor
Chipset:	Intel® Z790
Socket:	Intel® Socket LGA1700
Processor:	Intel® Core™ i7-14700KF
# of Cores:	20 (8 P-Core, 12 E-Core)
# of Threads:	28
Core base frequency:	3.40GHz (P-Core), 2.50GHz (E-Core)
Core max frequency:	Up to 5.6GHz Overclocked
System cooling
Cooling:	Water Cooled
Radiator dimensions (mm):	458 (L) x 138 (W) x 38 (H)
Memory
Max configurable memory:	128GB DDR5-5600MHz (4 x 32GB)
CAS latency:	39
Storage
M.2 slots:	2 x M.2 2280 (PCIe 4.0 x4 mode) 1 x M.2 2280 (PCIe 4.0 x4 & SATA mode)
Expansion slots
PCIe slots:	1 x PCIe 5.0 x16 SafeSlot 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1
On-Board devices
Connectors:	1 x USB 3.2 Gen 1 1 x USB 3.2 Gen 1 Type-C® 2 x USB 2.0 4 x SATA 6Gb/s Thunderbolt™

Chassis
Form factor:	Midi-Tower
Front panel:	Personalized ProXbox's front panel to optimize the cabinet's air flow
Dimensions (mm):	450 (L) x 232 (W) x 463 (H)
Color:	Silver
Input/Output

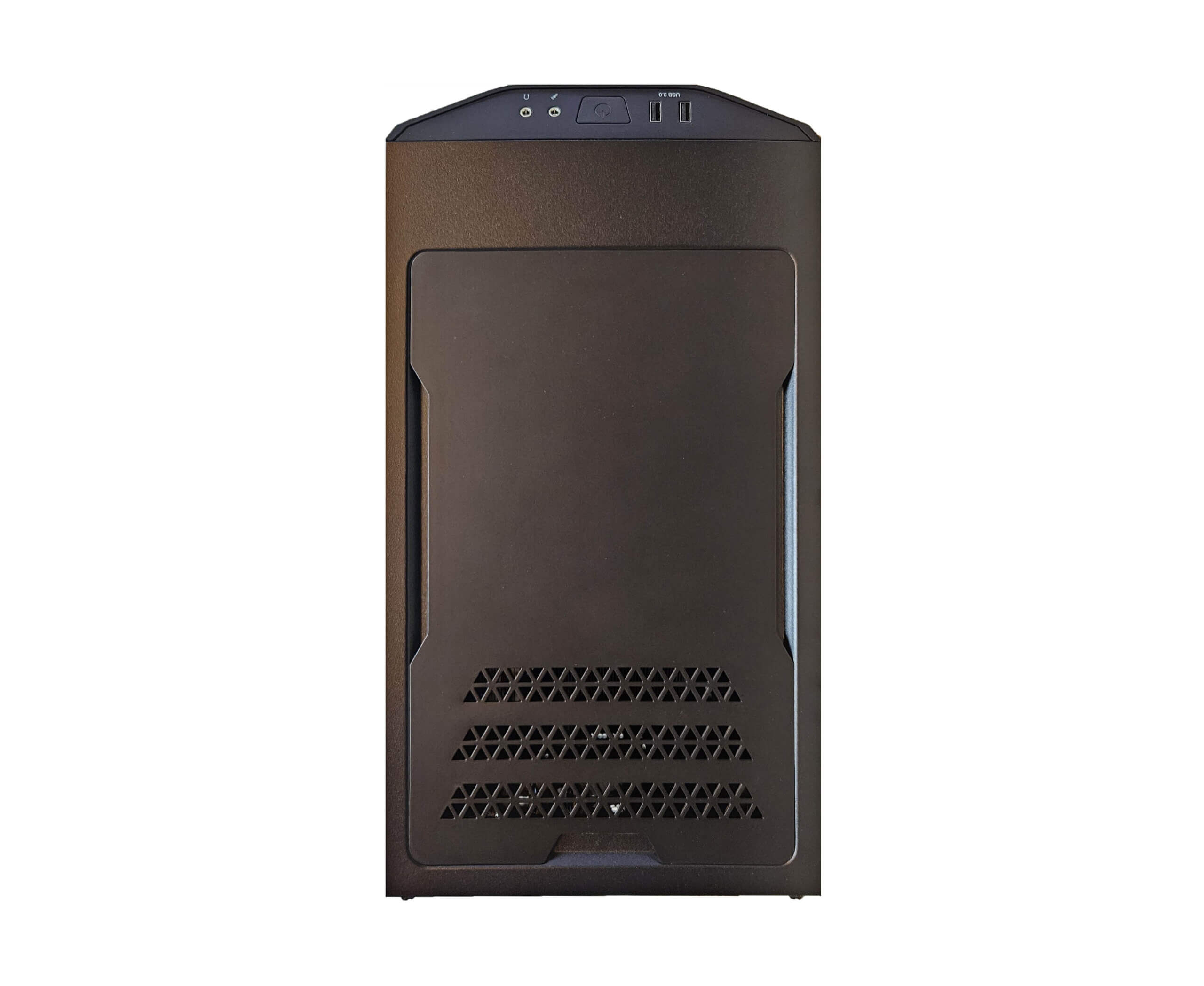

Top I/O:	2 x USB 3.2 Gen 1 HD audio (Microphone + Audio)

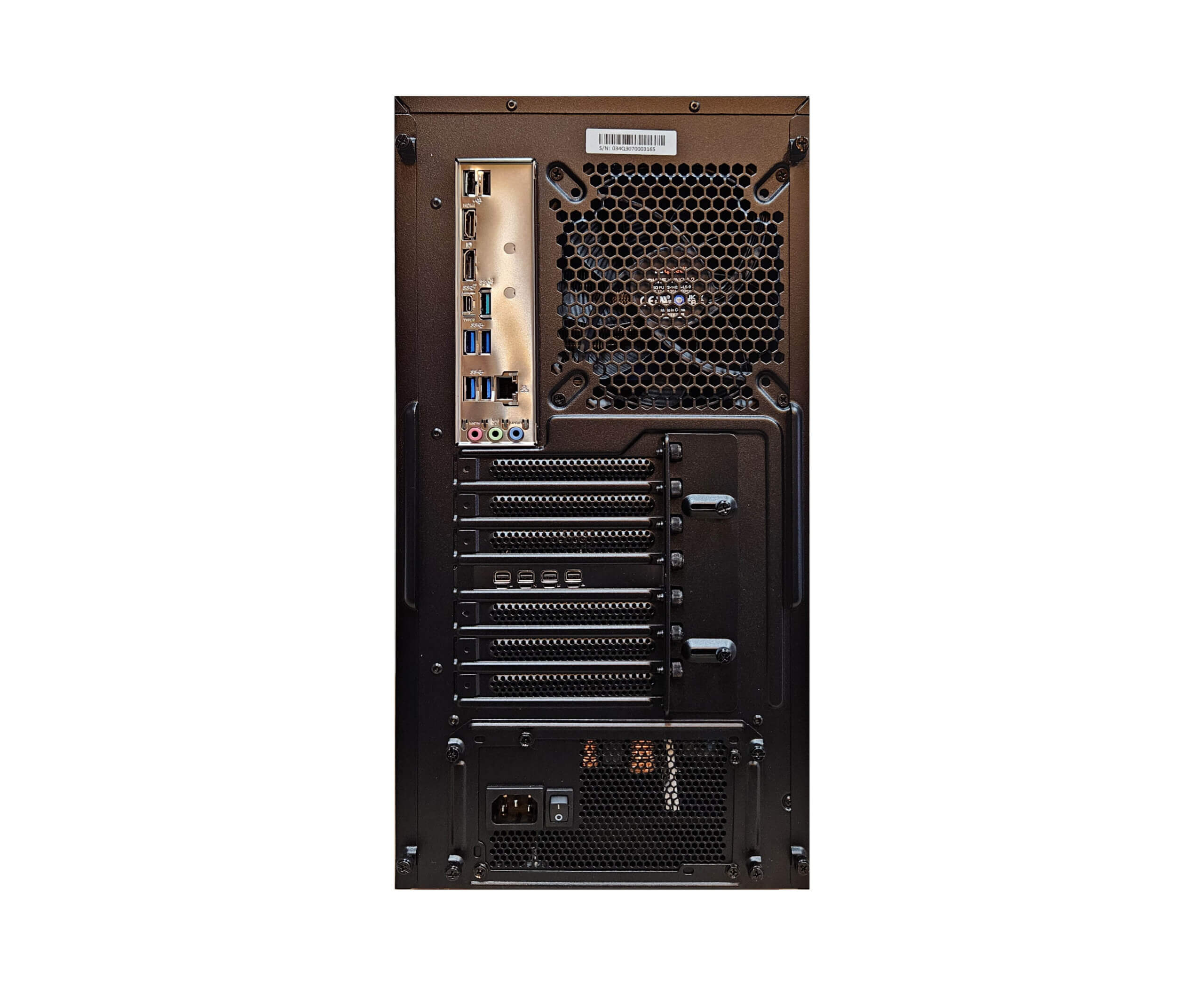

Rear I/O:	4 x USB 3.2 Gen 1 (Type-A) 1 x USB 3.2 Gen 2 (Type-A) 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 2.0 (Type-A) HDMI port Display port Intel® 1Gb Ethernet 3 x Jack audio
Power supply
Base power:	668W ATX 3.0
Certification:	Gold Level
Operating system
OS:	Microsoft® Windows™ 11 Pro 64 bit
Software
Gestione IT da remoto:	Control Center Express
Mouse e tastiera
Mouse:	Logitech® B110
Tastiera:	Logitech® K120
