Modello PBX-9127X

TOP-Level Workstation

CAD and 3D Modeling Applications
Product Design and Engineering Simulation
AI and Deep Learning

Professional Overclocking

Liquid Cooler

Mid Tower Custom Air Flow

PCI 4.0 High Endurance

3 Years Premium warranty

Basic features

AMD Ryzen™ 9 7950X up to 5.7GHz,
16 cores / 32 threads

Nvme 1TB Gen4 1DWPD,
R 700000 – W 400000 IOPS (4KB)

32GB DDR5-5200MHz,
CAS Latency 39

One or Two Nvidia® GPU supported
T1000, A2000, 2000ADA, A4000, 4000ADA, A4500*, 4500ADA*, A5500*, 5500ADA*, A6000*, 6000ADA*

Software di gestione IT da remoto
Control Center Express

850W Gold + Level Power Supply
Up to 1200W* Platinum + Level Power Supply

Contattaci

Specifications

Datasheet
Processor
Chipset: X670
Socket: AM5
Processor: AMD Ryzen™ 9 7950X
# of Cores: 16
# of Threads: 32
Core base frequency: 4.50GHz
Core max frequency: Up to 5.7GHz Overclocked
System cooling
Cooling: Water Cooled
Radiator dimensions (mm): 458 (L) x 138 (W) x 38 (H)
Memory
Max configurable memory: 128GB DDR5-5200MHz (4 x 32GB)
CAS latency: 39
Storage
M.2 slots:
  • 1 x M.2 22110 (PCIe 4.0 x4 mode)
  • 1 x M.2 2280 (PCIe 4.0 x4 mode)
  • 1 x M.2 22110 (PCIe 4.0 x4 & SATA mode)
Expansion slots
PCIe slots:
  • 1 x PCIe 5.0 x16 SafeSlot Core+
  • 3 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x1
On-Board devices
Connectors:
  • 2 x USB 3.2 Gen 1
  • 1 x USB 3.2 Gen 2 Type-C®
  • 2 x USB 2.0
  • 6 x SATA 6Gb/s
  • Thunderbolt™ 4
Chassis
Form factor: Midi-Tower

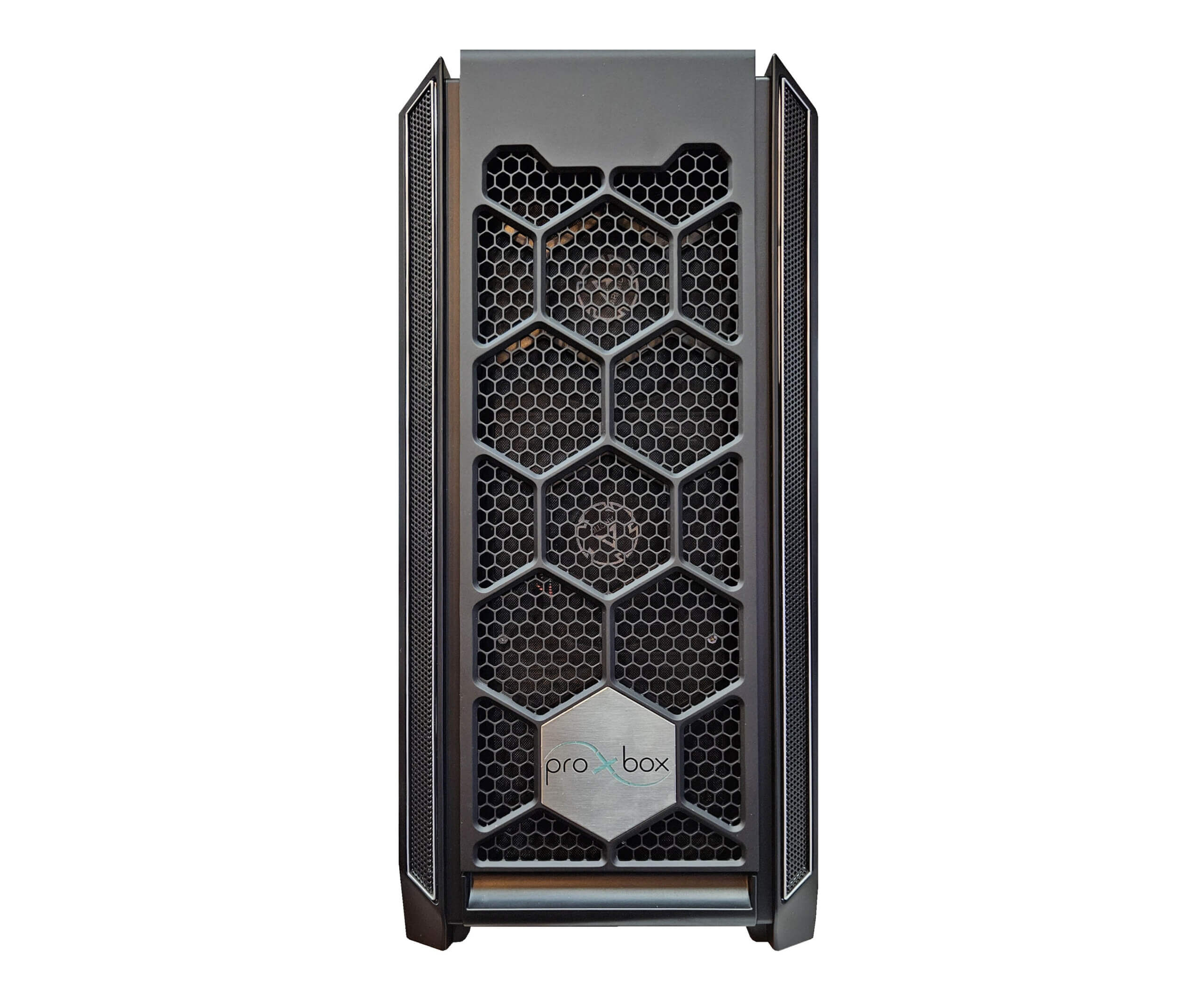

Front panel: Personalized ProXbox's front panel to optimize the cabinet's air flow
Dimensions (mm): 553 (L) x 245 (W) x 502 (H)
Color: Black
Input/Output

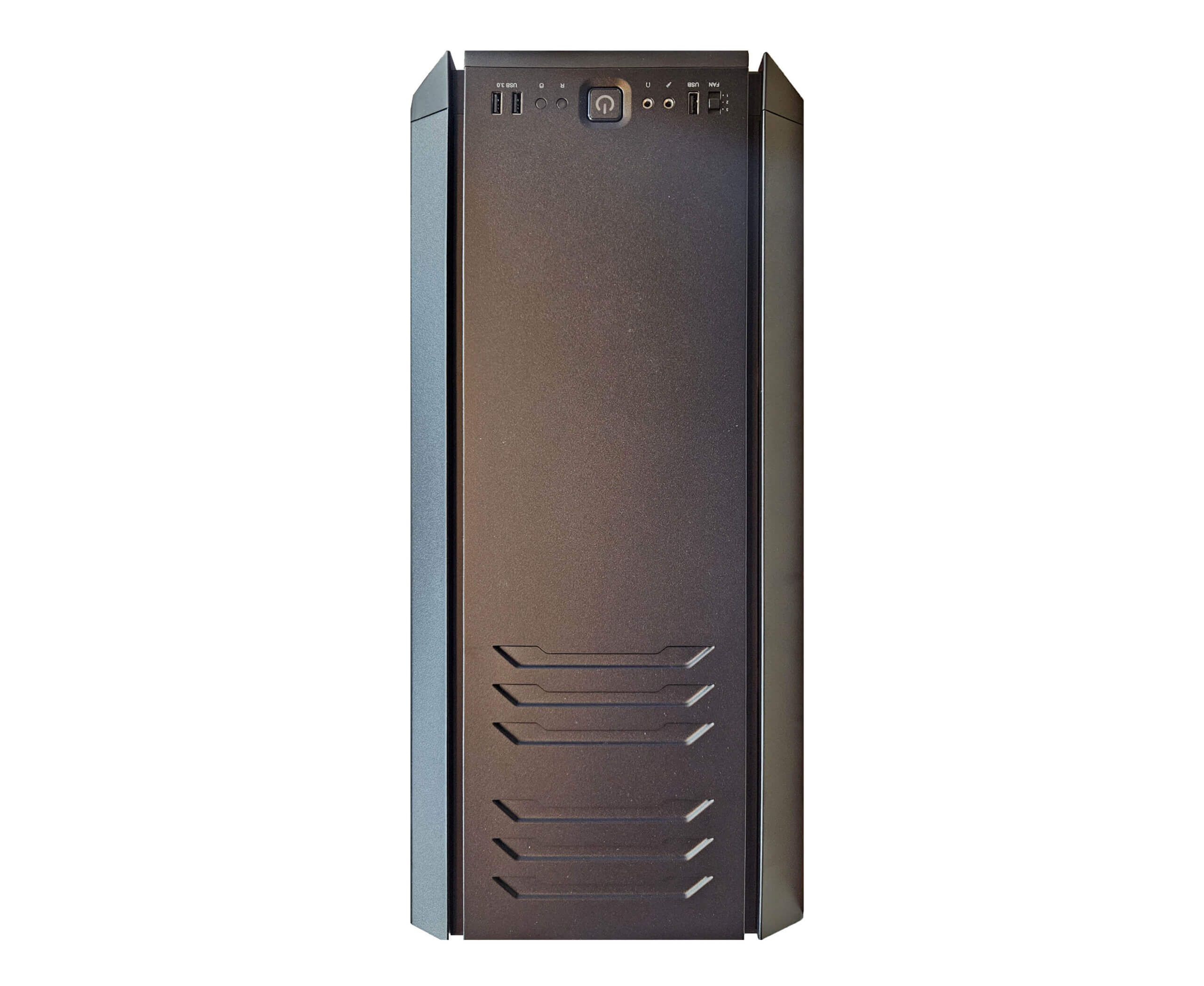

Top I/O:
  • 2 x USB 3.2 Gen 1
  • 1 x USB 2.0
  • HD audio (Microphone + Audio)
  • Fan controller
  • HDD status LED

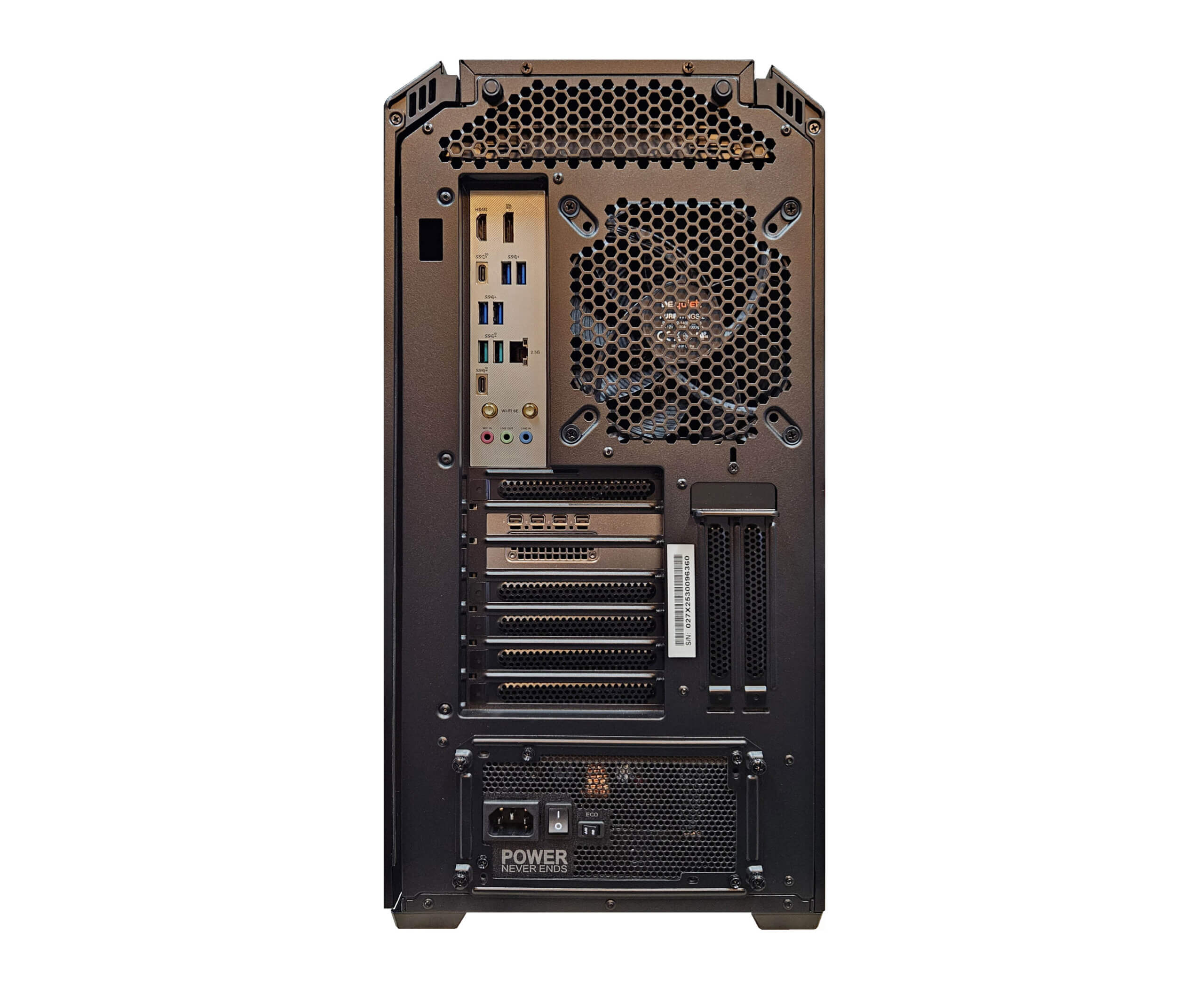

Rear I/O:
  • 3 x USB 3.2 Gen 2 (Type-A)
  • 1 x USB 3.2 Gen 2x2 Type-C®
  • 4 x USB 3.2 Gen 1 (Type-A)
  • 2 x USB 2.0 (Type-A)
  • HDMI port
  • Display port
  • 2.5Gb Ethernet
  • 3 x Jack audio
  • 1 x Slot M.2 verticale (Key E)
  • 1 x PS/2
Power supply
Base power: 850W ATX 3.0
Certification: Gold-Level-Power-SupplyGold Level
*Max power (optional or with high level GPUs): 1200W ATX 3.0
Optional Certification: Platinum-Level-Power-SupplyPlatinum Level
Operating system
OS: Microsoft® Windows™ 11 Pro 64 bit
Software
Gestione IT da remoto: Control Center Express
Mouse e tastiera
Mouse: Logitech® B110
Tastiera: Logitech® K120
