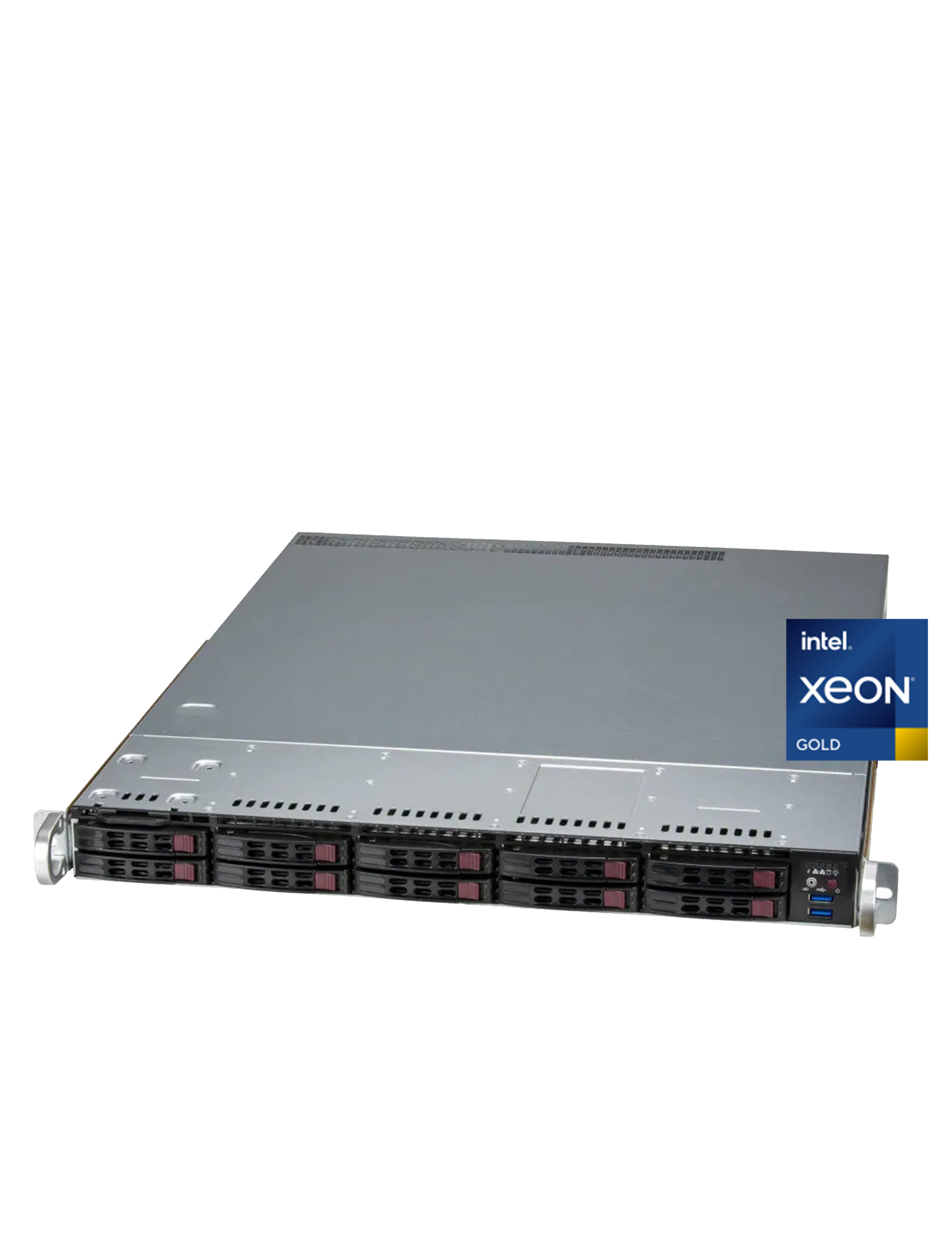

PNS-110P-WTR

1U Rackmount Server

Virtualization
Enterprise Server
Database Processing and Storage

Basic features

Intel® Xeon® Gold up to 3.6GHz,
8 cores / 16 threads

1° Raid Storage pool: 2 x 3.8TB NVMe
Enterprise Read Intensive

2° Raid Storage pool: 4 x 1.92TB SSD
Enterprise Mixed Use

128GB DDR4-3200 ECC UDIMM
Up to 2TB

Networking
2x 10GbE LAN port

1U 700W/750W Redundant
Platinum Level Power Supply

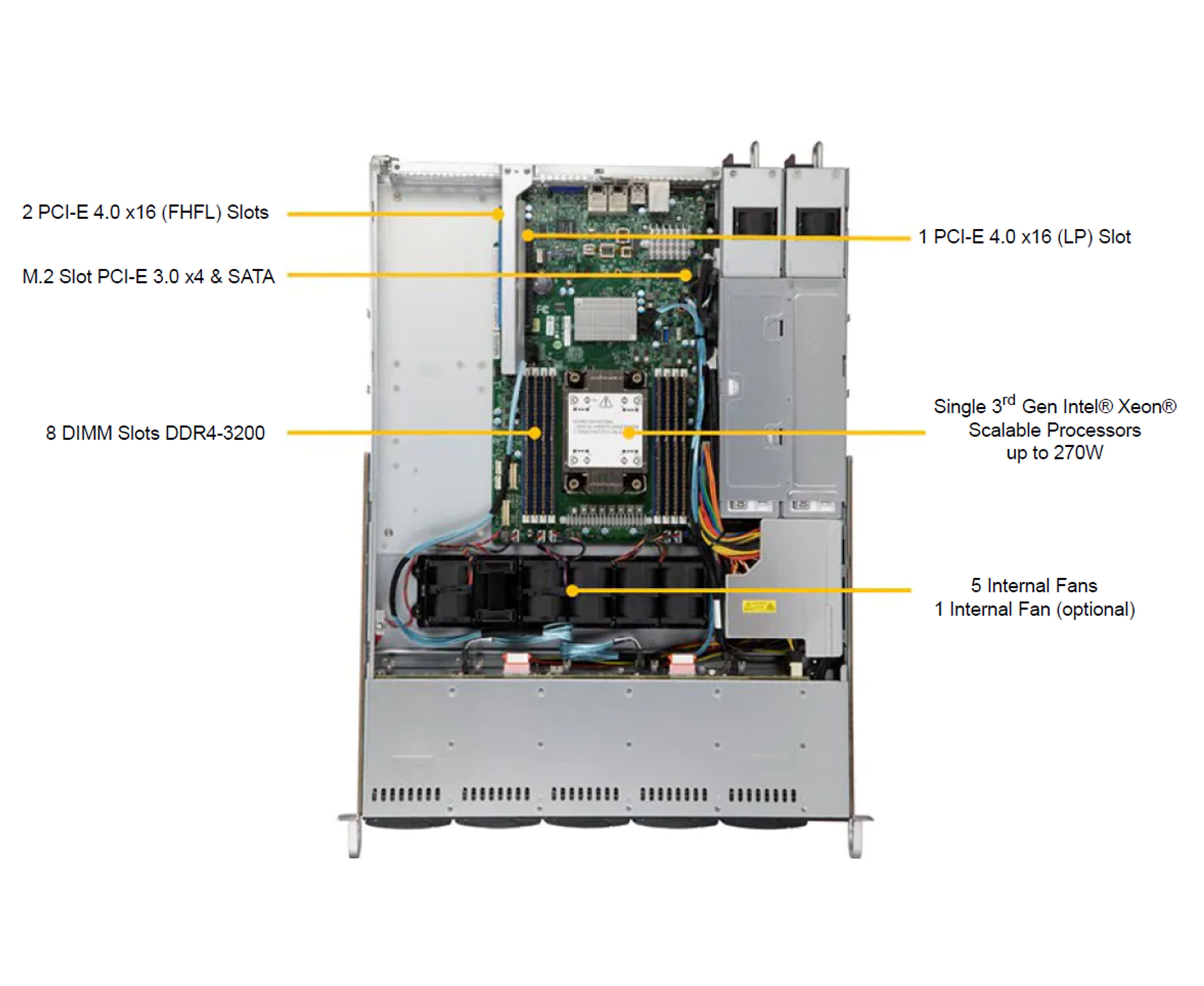

Specifications

Processor
Processor:	Intel® Xeon® Gold
# of Cores:	8
# of Threads:	16
Cache:	12MB
System cooling
Fans:	5 x counter-rotation PWM (40x40x56mm) 1 x AOC cooling fan (optional)
Memory
Capacity:	8 DIMM slots
Support:	Up to 2TB: 8 x 256GB DDR4-3200 ECC UDIMM
Storage
M.2 slots:	1 x M.2 PCIe 3.0 x4 SATA (2280/22110)
Expansion slots
PCIe slots:	2 x PCIe 4.0 x16 FHFL 1 x PCIe 4.0 x16 LP
Raid Controller
1° pool NVMe:	NVME Broadcom SAS-3
2° pool SSD:	SSD SATA Controller

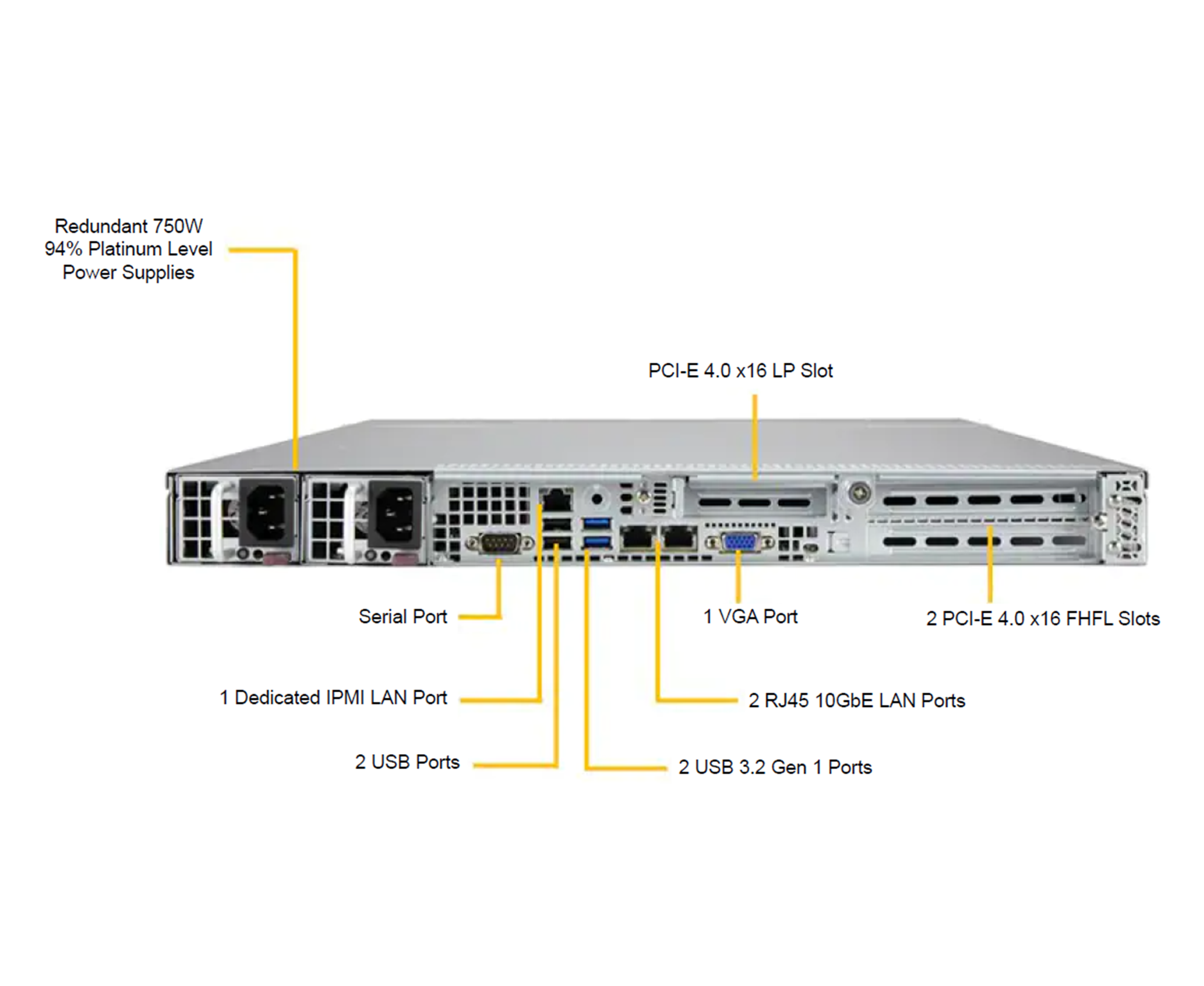

Input/Output
SATA:	10 SATA (6Gbps)
LAN:	2 x RJ45 10GbBase-T LAN with Intel® X550 1 x RJ45 Dedicated IPMI LAN port
USB:	4 x USB 3.2 Gen 1 (2 front; 2 rear) 2 x USB 2.0 (2 rear) 3 x USB (2 headers; 1 Type A)
Video:	1 x VGA 2 port
Serial Port:	2 x COM port (1 header; 1 rear)

Chassis
Form factor:	1U Rackmount
Dimensions (mm):	597 (L) x 437 (W) x 43 (H)
Color:	Black
Front Panel
Buttons:	Power On/Off button UID button
LEDs:	Device activity LAN 1 activity LAN 2 activity Power status System information

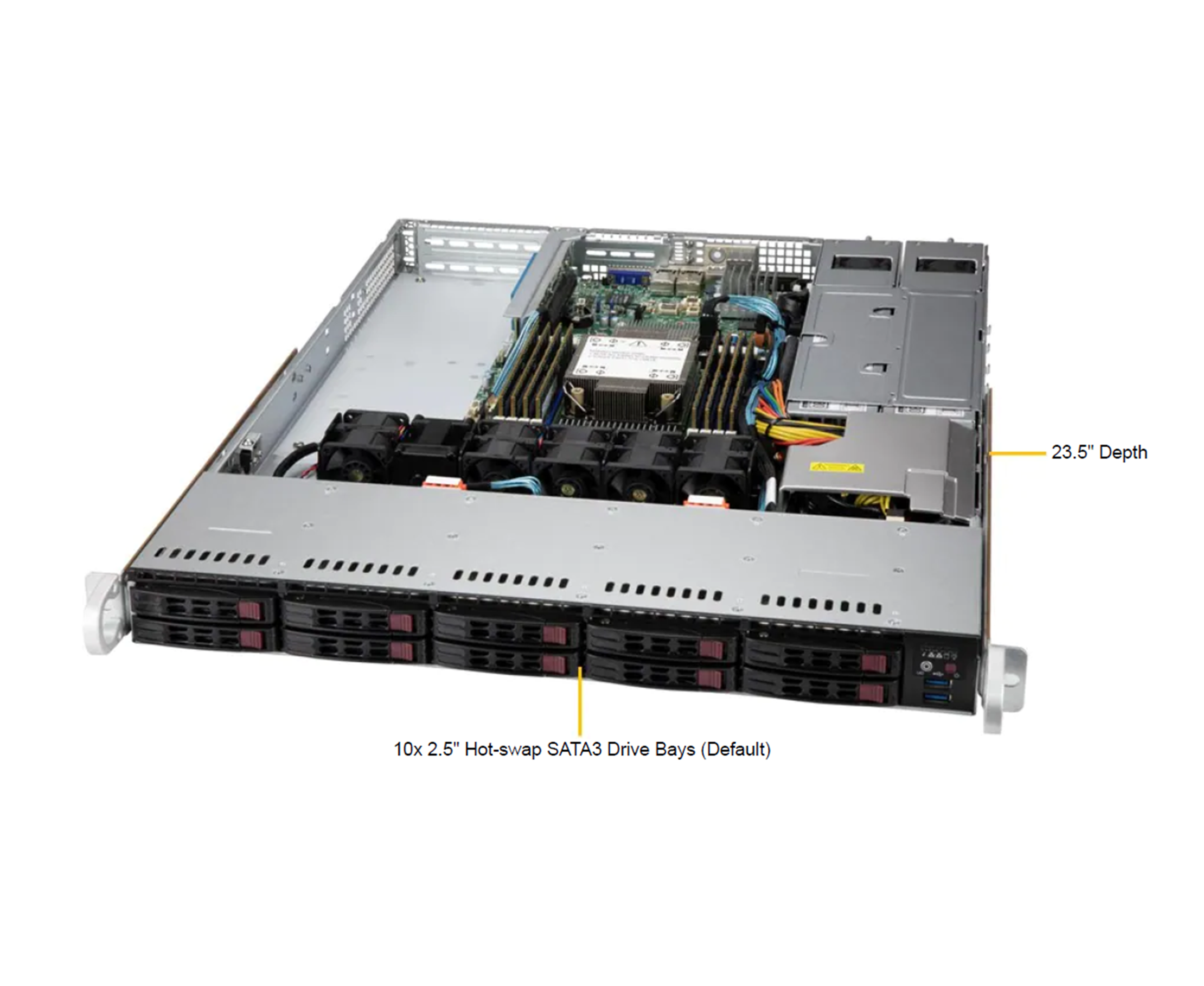

Drive Bays
Drive Bays:	10 x 2.5" SATA drive bays (4 x 2.5" NVMe hybrid)
Power supply
Base power:	1U 700/750W Redundant Single Output Power supply
Certification:	Platinum Level
Operating system
OS:	Windows Server 2022 Windows Server 2019 RedHat Linux EL 8.2 RedHat Linux EL 8.0 Ubuntu 20.04 LTS
