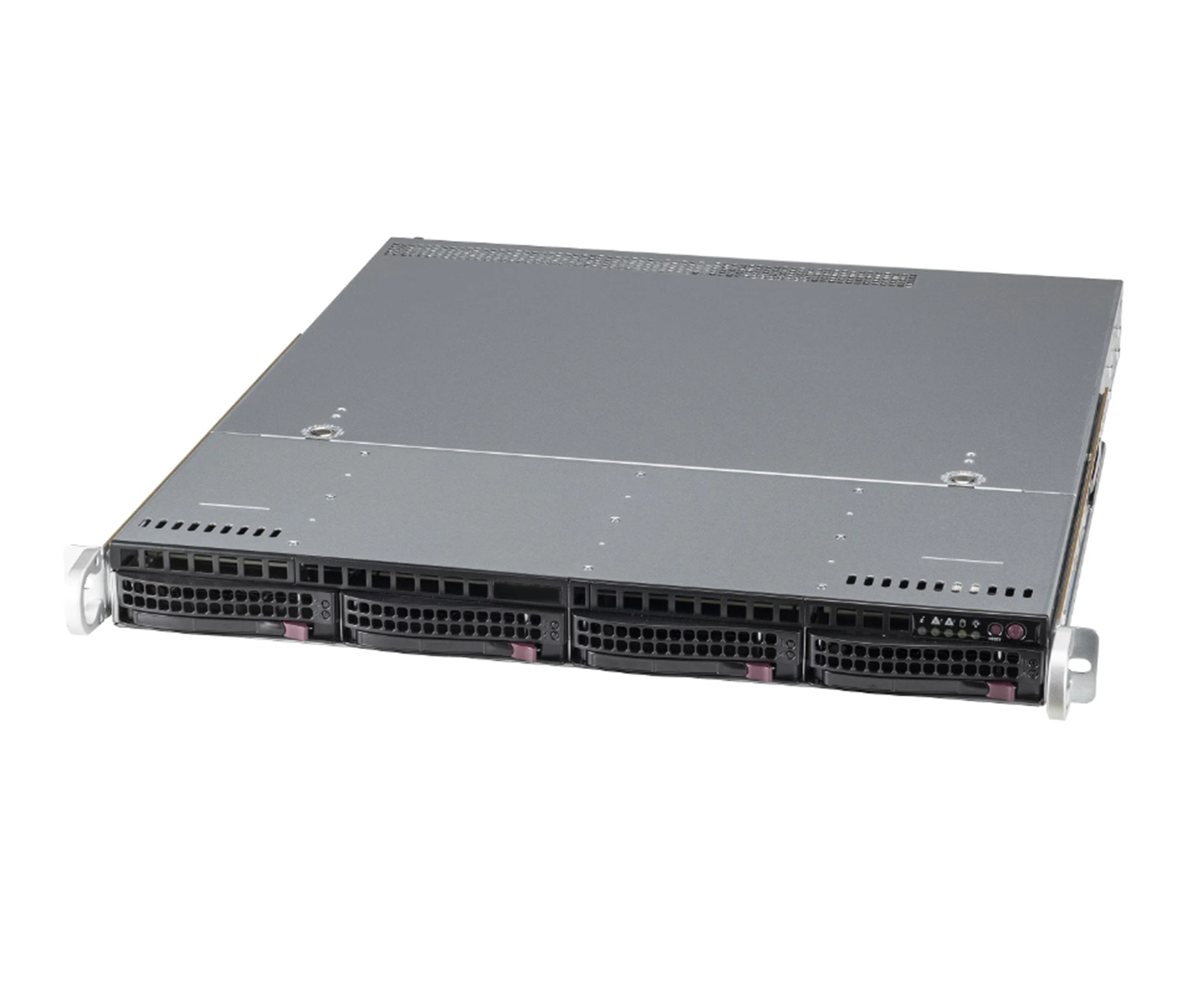

PNS-813MFTQC-350CB2

1U Rackmount Desktop Server

Virtualization
Enterprise Server
Database Processing and Storage

Basic features

Intel® Xeon® D up to 3.0GHz,
8 cores / 16 threads

1° Raid Storage pool: 2 x 1.92TB NVMe
Enterprise Read Intensive

2° Raid Storage pool: 4 x 960GB SSD
Enterprise Mixed Use

32GB DDR4-3200 ECC RDIMM
Up to 512GB

Networking
2x 10GbE LAN port

350W Platinum Level
Power Supply

Specifications

Processor
Processor:	Intel® Xeon® D Processor
# of Cores:	8
# of Threads:	16
Cache:	11MB
System cooling
Fans:	4 x 40x28mm PWM fans
Memory
Capacity:	4 DIMM slots
Support:	Up to 512GB DDR4-3200 ECC RDIMM
Expansion slots
PCIe slots:	1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 NVMe Internal Port via OCuLink
Raid Controller
1° pool NVMe:	NVME Broadcom SAS-3
2° pool SSD:	SSD SATA Controller
Input/Output
LAN:	2 x RJ45 10GBase-T 1 x RJ45 Dedicated IPMI ASPEED AST2500 LAN port
USB:	2 x USB 3.0 (2 rear) 2 x USB 2.0 (2 via header)
Video:	1 x VGA port
TPM:	1 x TPM Header

Chassis
Form factor:	1U Rackmount
Dimensions (mm):	503 (L) x 437 (W) x 43 (H)
Color:	Black
Front Panel
Buttons:	Power On/Off button System Reset button
LEDs:	Power status LED HDD activity LED System Information LED 2 Network Activity LEDs
Drive Bays
Drive Bays:	4 x 3.5" hot-swap SAS/SATA
Backplane:	4 x 3.5" Port 1U 12Gbps backplane support
Power supply
Base power:	1U 350W Multi-Output Power supply
Certification:	Platinum Level
Operating system
OS:	Windows Server 2019 Windows Server 2016 RedHat Linux EL 7.6 RedHat Linux EL 7.4 RedHat Linux EL 6.9
