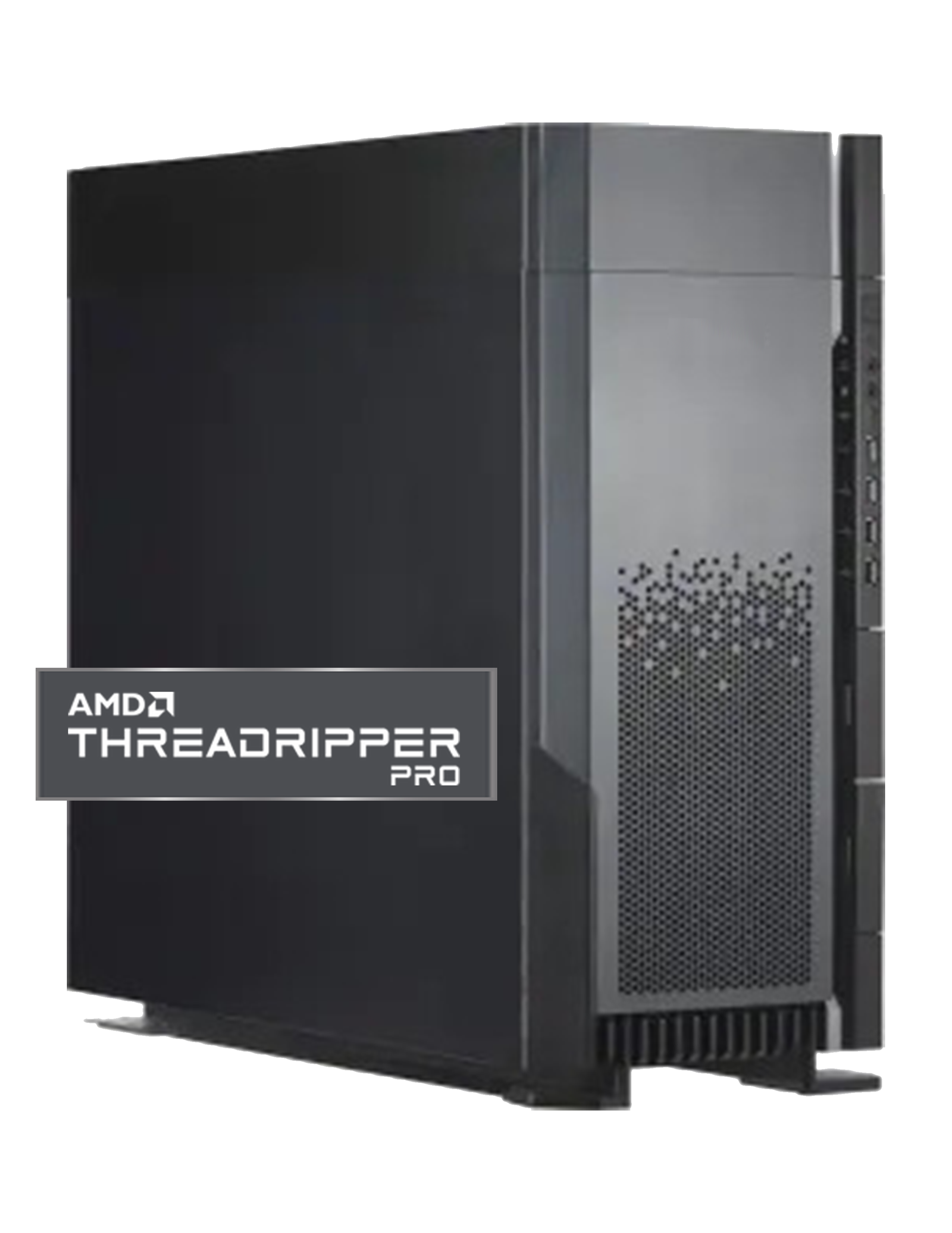

PBX-5014A-TT

TOP-Level Workstation

Product Design and Engineering Simulation
Media and Entertainment Content Creation

Basic features

AMD Ryzen® Threadripper™ PRO 5000WX/3000WX,
up to 64 cores

Nvme 1TB Gen4 1DWPD,
R 700000 – W 400000 IOPS (4KB)

8 DIMMs,
up to 2TB registered ECC DDR4 3200MHz

Up to 4 Nvidia® Quadro GPU supported
A2000, A4000, A45000, A5500, A6000 (*)

2000W Platinum Level
Power Supply

Specifications

Processor
Chipset:	AMD® WRX80
Socket:	AMD® Socket sWRX8/SP3
Processor:	AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series
Max # of Cores:	Up to 64 cores
System cooling
Fans:	1 x 12cm rear exhaust fan 2 x 12cm front cooling fans
Memory
Capacity:	8 DIMM slots
Support:	Up to 2TB Registered ECC DDR4 3200MHz SDRAM
Bus:	8-channel memory bus
Storage
M.2 Interface:	4 x PCIe 4.0 x4
Form Factor:	2280, 22110
Key:	M-Key
Expansion slots
PCIe slots:	6 x PCIe 4.0 x16
U.2:	2 x U.2 Sockets with Software RAID 0,1 support
On-Board devices
SATA:	SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:	10G LAN: Single LAN via Marvell AQC113C 10G Ethernet Controller 1GbE LAN: Single LAN with Intel® I210AT Ethernet Controller (Shared with IPMI)
Audio:	7.1 channel HD Audio by Realtek LC4050H + ALC1220
GPU
*One optional Gaming GPU supported:	Nvidia® GeForce RTX 3060 Nvidia® GeForce RTX 3070 Nvidia® GeForce RTX 3080 Nvidia® GeForce RTX 3090 Nvidia® GeForce RTX 4090
Power supply
Base power:	2000W/2 Multi-Output Power supply
Certification:	Platinum Level

Chassis
Form factor:	Full Tower
Optional:	Rackmount Kit (6U)
Dimensions (mm):	573 (L) x 222 (W) x 535 (H)
Color:	Black
Front Panel
Buttons:	Power On/Off button LED On/Off button
LEDs:	Power LED
Ports:	1 x USB 3.2 (Type C) 2 x USB 3.2 (Type A) 2 x USB 2.0 1 headphone jack 1 audio jack
Input/Output
SATA:	4 x SATA3 (6Gbps)
LAN:	1 x RJ45 10GBase-T Ethernet 1 x RJ45 GbE Ethernet (Shared with IPMI)
USB:	1 x USB 3.2 Gen 2x2 (Type C, 20Gbps) 5 x USB 3.2 Gen 2 (4 Type A, 1 front Intel Type C header, 10Gbps) 5 x USB 3.2 Gen 1 (3 Type A, 1 via header) 2 x USB 2.0 via header
Video:	1 x VGA (dedicated for IPMI)
Audio:	7.1 HD Audio with optical S/PDIF
Serial Port / Header:	1 x COM port (rear)
TPM:	1 x TPM 2.0 Header
Drive Bays
Fixed:	4 x internal fixed 3.5"/2.5" SATA3 2 x front fixed 2.5" SATA3
Peripheral Bay(s):	2 x 5.25"
Operating system
OS:	Microsoft® Windows™ 10 Pro 64 bit Microsoft® Windows™ 11 Pro 64 bit Linux RHEL 8.4
Mouse e tastiera
Mouse:	Logitech® B110
Tastiera:	Logitech® K120
